Cervelo P5 Six Frameset

Cervelo P5 Six Frameset
$7,000.00
Color:
Red/White
Please select options
Sorry, this item is currently not available. Please check back.

Details

Cervelo's engineers left no stone unturned, or more precisely, no dull edge unshaven, to achieve absolute aero perfection. The P5 Six Frameset took form with the help of fluid dynamic software and has dominated Ironman competitions and Grand Tours alike ever since. An integrated aero fork, powerful, aerodynamic hydraulic brakes, and the highly customizable, one-piece 3T Aduro stem, base bar and aero extensions all work together to create a front end with world-renowned speed. A shallow front wheel cutout and deep rear cutout reduce the drag coming off your wheels' trailing and leading edges. With Cervelo's ComfortPly technology and BBright bottom bracket, the P5 also provides phenomenal power transfer with minimal weight. The P5's wide-ranging fit options and gear-carrying capacity will keep you comfortably going strong, no matter how long the race.

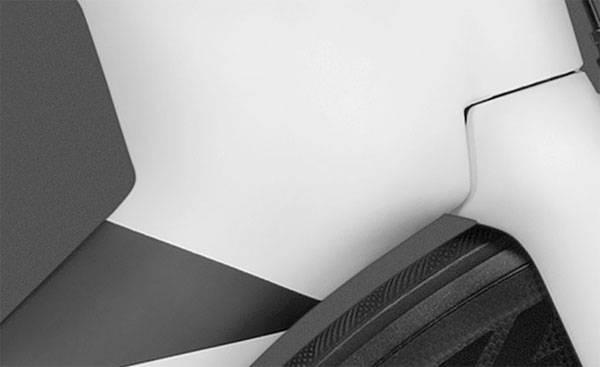

Dropping the down tube “hides” it in dirty air, reducing the high pressure normally found on the down tube’s leading edge, and eliminating the low pressure air that normally pulls rearward on the fork crown.

ICS3 (Internal Cable Stops) erradicates the need to run internal cable housing the entire length of the tube, which adds friction and up to 200 grams of dead weight.

Internal Cable Stops on the other hand, function much like external stops. The housing fits into the stops and the bare cables travel in unobstructed paths through the frame, into the bottom bracket cable guide, and straight to the derailleurs.

ICS3 also reduces aerodynamic drag by placing the cable housing entry out of the wind behind the stem. In order to have the cables enter the top tube, yet travel unobstructed through the downtube, Cervelo's ICS3 frames use Teflon-lined stainless steel tubes, curved to guide the cables into perfect alignment with the Bottom Bracket cable guide.

The P5 offers multiple options for carrying your gear, each one specifically positioned to minimize aero drag, so you’re always ready to race. Cables and the battery are completely sheathed inside the frame’s HiddenPocket for an aero improvement of 10-20 grams.

It also features a horizontal standard two-bolt bottle cage between the arms on the aerobar, which Cervelo has found to be by far the most aero position. Two mounting bolts are also incorporated behind the stem to allow for further aero storage options.

Specs

Frame Cervelo carbon
Fork Cervelo P5 All-Carbon
Headset FSA IS2
Handlebars 3T Arduro, integrated
Stem 3T Arduro, integrated
Brakes Magura RT8, hydraulic, rim
Seatpost Cervelo Aero, rail-adjust

* Subject to change without notice.

Videos

Cervelo P5 - simply faster

Cervelo P5 - meet the engineers

Part Numbers

Option MPN
Red/White / 48cm 0A0P5CFS1X48
Red/White / 51cm 0A0P5CFS1X51
Red/White / 54cm 0A0P5CFS1X54
Red/White / 56cm 0A0P5CFS1X56
Red/White / 58cm 0A0P5CFS1X58
Red/White / 61cm 0A0P5CFS1X61
Red/White / 45cm 0A0P5CFS1X45
