The Rift Zone is our most speed-oriented MultiTrac bike, created for the rider looking for the speed and rollover capabilities of 29” wheels in a trail-capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
UNIDIRECTIONAL CARBON FIBER FRAME
The Rift Zone Carbon 2 model features high modulus carbon fiber and monocoque construction to deliver the lightest, most capable, Rift Zone that Marin has ever made.
MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long-travel system on large drops and rocks.

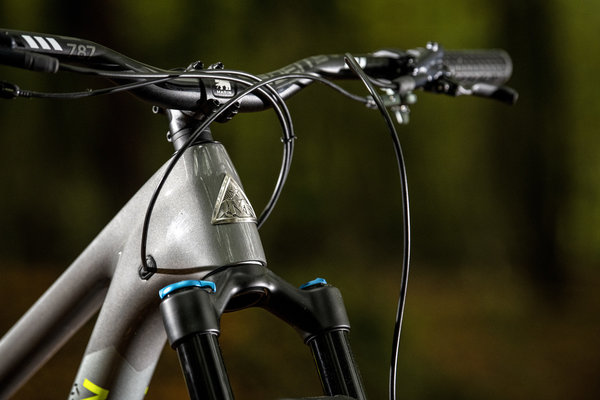

All Rift Zone models sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a cleaner and rattle-free cable set up.
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
|Frame||All New Unidirectional Carbon Fiber Front Triangle, Series 3 Alloy Rear End, 29" Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs|
|Fork||Fox Performance 34 Float, 3 Position Micro Adjust Compression Adjustment, Rebound Adjustment, 110x15mm Kabolt Axle, 44mm Offset|
|Headset||FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"|
|Rear Shock||Fox Float DPX2, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, 30mmx M8 Upper & 25mm x M8 Lower Hardware|
|Rims/Wheels||Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible|
Front: Shimano, 110x15mm, Centerlock Disc, 32H
Rear: Shimano, Microspline 148x12mm, Centerlock Disc, 32H
|Spokes||14g Black Stainless Steel|
Front: Maxxis Minion DHF 29x2.5WT, 3C MaxxTerra, EXO+, Tubeless Compatible
Rear: Maxxis Minion DHR II 29x2.4WT, 3C Maxx Terra, EXO+, Tubeless Compatible
|Crankset||FSA Gradient, Modular 1x, Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing|
|Bottom Bracket||BB392 EVO, 73mm BSA Threaded|
|Chain||KMC X-12 Silver & Black|
|Rear Derailleur||Shimano XT 12-Speed, SGS|
|Cassette/Rear Cogs||Shimano SLX M7100 Cassette, 12-Speed, 10-51T|
|Shifters||Shimano SLX 12-Speed, I-Spec EV|
|Handlebars||Deity Skyline Bar, 787mm Width, 25mm Rise|
|Tape/Grips||Marin Single Clamp Locking|
|Stem||Marin 3D Forged Alloy, 35mm|
|Brake Levers||Marin 3D Forged Alloy, 35mm|
Front: Shimano SLX Hydraulic Disc, 203mm rotor
Rear: Shimano SLX Hydraulic Disc, 180mm Rotor
|Saddle||Marin Trail Speed Concept Pro|
|Seat Post||X-Fusion Manic with PNW Loam Lever, I-Spec EV, Size S 125mm Travel, Size M & L 150mm Travel, Size XL 175mm Travel, 30.9mm|
* Subject to change without notice.
2020 Rift Zone Carbon - Nikki Whiles
|Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / Small||843346103772||730112001|
|Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / Medium||843346103789||730112002||210000152455|
|Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / Large||843346103796||730112003||210000152456|
|Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / X-Large||843346103802||730112004|
