Shimano Rotors and Rotor Hardware

Shimano Rotors and Rotor Hardware
  • Model | Size: XTR-M975 (RT97 series) | 35mm Spline (Grey-Aluminum)
  • Model | Size: M965/810/775/765/665 (RT96/79/78/77 series) | 35mm Spline (Black-Aluminum)
  • Model | Size: FH-M988/828/825/820/810/788/678/648/645/640 | 35mm Spline (Gold-Aluminum)
$14.99 - $19.99
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience. NOTE: Due to increased shipping costs, some larger items, not available "in store" might require additional time in order to be received from the warehouse. This is most common when selecting bikes from Giant Bicycles.

Details

- (IS): 6-bolt/44mmBCD International Standard, (CL) 35mm CenterLock spline-mount

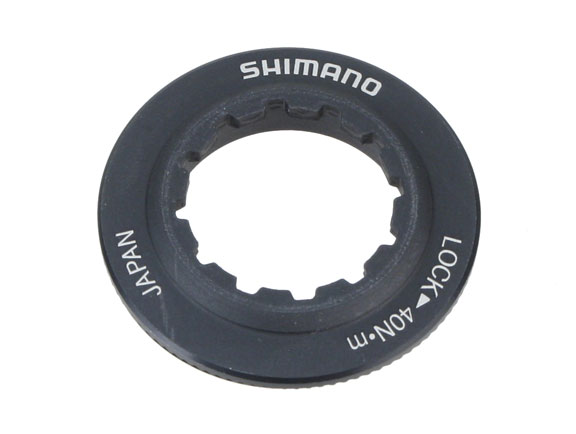

- All rotors include hardware: either 6-bolt or CenterLock lockring+washer (lockrings for thru-axle applications available separately)
- RT99 Centerlock rotor optimized for pure gravity. Takes the innovative 3-layer clad rotor to the next level by adding radiator fins. Braking and performance benefits include 20% less brake fade, 20% increase in stopping power and 20% longer pad life
- RT98 CenterLock rotors are for XTR applications and utilize a bonded steel-over-aluminum "Ice Tech" design with an aluminum spider/carrier for decreased weight and improved heat dissipation (replacing RT97/96 versions)
- RT76 6-bolt rotors can be used with all Shimano disc brake systems: XTR,Saint,XT,SLX,LX,Deore,etc. (note: the newer RT76 rotor uses a lightweight 2-piece design with a 5-arm aluminum carrier and a stainless steel rotor)
- CenterLock lockring/washer applications: (QR) for quick-release hubs, (TA) for thru-axle, and (F or R) for front or rear when applicable

Part Numbers

Option UPC MPN Store SKU
M965/810/775/765/665 (RT96/79/78/77 series) / 35mm Spline (Black-Aluminum) 689228216211 Y8CL98090 126814
FH-M988/828/825/820/810/788/678/648/645/640 / 35mm Spline (Gold-Aluminum) 689228270855 Y3D498100
XTR-M975 (RT97 series) / 35mm Spline (Grey-Aluminum) 689228217294 Y8HN98050
